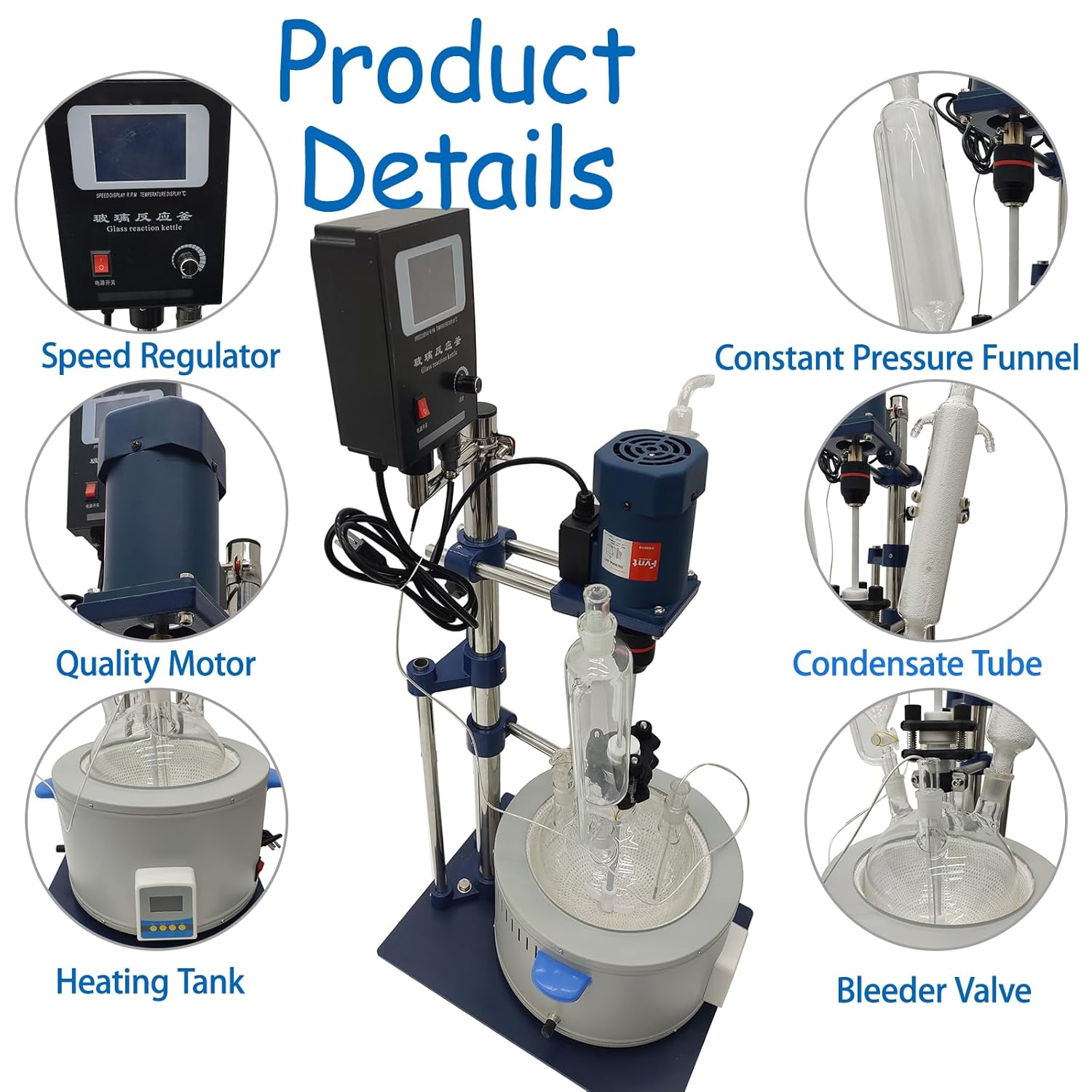

5L Single Layer Lab Reactor with High Borosilicate Glass & PTFE Valves 110V Constant Temperature Control Lab Glass Reactor Chemical Jacketed Reactor Vessel for Lab Reaction Distillation

▼Instruction：Glass reactor is single-layer glass design, can do stirring reaction.Under the set constant temperature conditions, in the closed glass reactor, it can be stirred under atmospheric or negative pressure conditions according to the use requirements, and can do the reflux and distillation of the reaction solution, which isan ideal pilot test and production equipment for modern fine chemical industry, biopharmaceutical and new material synthesis.▼Technical Parameter:Type: single layer sphericalCapacity: 5LMotor Power: 90WSpeed: Electronic speed regulation 0-600 RPMPower Supply: 110VWithstand Temperature: -120℃----300℃Withstand Temperature Difference: +/-40℃Temperature Control Accuracy: ±1℃Heating Temperature: maximum surface temperature 380℃Boiling: 50ml water 10-25 minutesFurnace Wire: Cr20Ni80Extreme Edge Layer: no alkali glass fiber, can withstand temperature 450 degreesInsulation Factor: Dry ≥500 megabytesThermal Insulation Layer: exclusive use of aluminum silicate cotton vacuum filter type environmental insulation bodySafety Tube: 5×20 15A▼Item Number: 220535 5L Single-layer Glass Reactor 110V

• Lab Grade Sealing System: The 5L glass reactor is equipped with PTFE sealed reaction chamber, which can maintain -0.1MPa vacuum and has industrial grade airtightness to ensure leakage-free operation
• Intelligent Control: The single-layer glass reactor with intelligent thermostat electric heating jacket ensures precise temperature stability, and the non-sparking stepless speed-regulating motor can be safely and smoothly adjusted to meet various reaction needs
• Standardized Connection: The reactor can be assembled or disassembled quickly, in which the constant pressure drip funnel keeps the reactor balanced and improves the experimental precision, and the high-efficiency condenser ensures high recovery rate
• High-quality Material: The main body of the single-level reactor is made of stainless steel frame and aluminum alloy, beautiful and sturdy, stainless steel stirring bar coated with PTFE, suitable for a variety of solvents stirring, non-polluting and non-leakage
• Widely Application: The glass reactor is a single-layer glass design for stirring reaction, which is an ideal pilot and production equipment for modern fine chemicals, biopharmaceuticals and new materials synthesis
